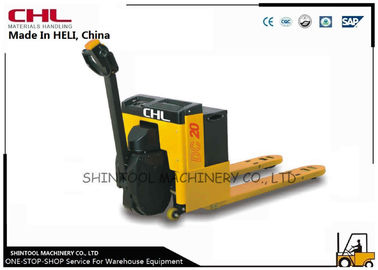

Industrial heavy duty pallet jack with heavy loaded 2 ton pallet jack

Industrial heavy duty pallet jack with heavy loaded 2 ton pallet jack
Industrial heavy duty pallet jack with heavy loaded 2 ton pallet jack

Large Image :  Industrial heavy duty pallet jack with heavy loaded 2 ton pallet jack

Product Details:
Place of Origin: Anhui, China
Brand Name: CHL 【HELI new brand】
Certification: CE, CQC
Model Number: CBD20-100, CBD20-150, CBD20-460, CBD20-470
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Pack in nude, 28 units per 20GP.
Delivery Time: 30 days after received deposit.
Payment Terms: 30% T/T in advance, 70% balance paid before delivery.
Supply Ability: 95000 units/year
Detailed Product Description
Load Capacity: 2000kg Battery Capacity: 210Ah
Drive Motor: DC 0.93KW Lift Motor: DC 2 KW
High Light:

motorized pallet jack

,

warehouse pallet jack

2.0T Electric Pallet Jack 2000kg Full Electric Pallet Truck With 210Ah Battery Cpacity  Pedestrian



Quick Detail:

1. Product Category: Material Handling

2. Forklift Power Type: Electric

3. Product Use: Loading & unloading cargo, moving cargo in pallets

3. 1500kg rated capacity, 3000mm lifting height, 600mm load center

4. CURTIS 1243

6. Packing by pallet, 28 units per 20GP.







Description:

Anhui Heli Co., Ltd, was originally founded in 1958. During the past 55 years' development, Anhui Heli

always focus on forklift business. We have been No. 1 in China since 1991, and ranked No. 8 in the world

in 2013.



CHL is one new material handling brand of Anhui Heli, mainly to supply reliable and affordable forklift

trucks, electric pallet jack etc. Based on the Anhui Heli's advanced technology and equipment, CHL

electric pallet jack' quality is at TOP level in China. Mass production helps to lower cost, SAP system and

Lean Production ensure high quality. Those promise CHL electric pallet jack always be reliable and

Competitive.





Applications:

Material Handling, loading & unloading cargo, moving cargo in pallets in warehouse, factory building,

storage yard, airport, sea port, super market.









Specifications:



Model   CBD20 CBD20 CBD20 CBD20
Configuration No.   100 150 460 470
Load capacity kg 2000 2000 2000 2000
load center mm 600 600 600 600
Wheel base mm 1505 1390 1493 1480
Operating type   Pedestrian Pedestrian Pedestrian Pedestrian
Wheels type   PU PU PU PU

Wheel quantity

Driving wheel/

Balance wheel/

Load wheel

  1/4/2 1/4/1 1/4/2 1/4/2
Driving wheel size mm Ф252×67 Ф266×126 Ф248×75 Ф248×75
Balance wheel size mm 80×80(Double wheels)
Load wheel size mm 90×48 115×55 115×55 115×55
Min.fork lowered height mm 85 85 85 85
Max.fork lifring height mm 205 195 205 205
Max.lifting height mm 120 110 120 120
Overall fork width mm 540/600/685 540/600/685 540/600/685 540/600/685
Fork length mm 1150/1200 1150/1200 1150/1200 1150/1200
Fork width mm 185 185 185 185
Fork thickness mm 55 55 55 55
Overall length mm 1852 1750 1916/2333 1920/2335
Overall width mm 764 720 790 720
Overall height(With handle) mm 1380 1385 1455 1455
Overall height(Without handle) mm 765 850 845 900
Min.Turning radius mm 1667 1576 1746/2158 1735/2140
Min.Aisle with for pallets 800×1200 mm 1920 1900 2046/2435 2060/2451
Min.Aisle with for pallets 1000×1200 mm 1950 1940 2077/2458 2090/2468
Travel speed,laden/unladen km/h 5/5 4/4 6/6 6/6
Lift speed,laden/unladen mm/s 56/60 56/60 56/60 56/60
Travel speed,laden/unladen mm/s 57/59 57/59 57/59 57/59
Gradealility,laden/unladen % 5/7 5/7 5/7 5/7
Drive motor kW DC0.93 AC1.5 AC1.5 AC1.5
Lift motor kW DC2.0 DC2.0 DC2.0 DC2.0
Steering motor kW / DC0.15 DC0.15 DC0.15
Battery voltage/capacity V/Ah 24/210 24/210 24/270 24/280
Brake   Electromagnetic/Regenerative Electromagnetic/Regenerative
Controller   CURTIS1230 CURTIS1230 CURTIS1230 CURTIS1230
Battery weight kg 190 190 252 288
Service weight with battery kg 580 600 840 848

Competitive Advantage:

  1. 15 months (2000 hours) quality warranty, all kinds of spare parts are available.
  2. CHL is HELI factory new brand. New brand must be reasonable price and good quality.
  3. CHL stacker made in ANHUI HELI factory, the same assembling line of HELI brand electric pallet jack. The quality is same with HELI brand.
  4. Our CHL Material Handing more then 70% spare parts produce by self. And they develop SAP system that can guarantee the forklift sold have reliable parts supply and quality. So, in the whole stacker life, you can get the Genuine Parts from us or your market.
  5. Double floating springs, palented design of boost cylinder, stronger driving force.
  6. Side-extraction battery. More convenience for multiple shift.
  7. Automatic reset handle and pedal by gas springs gentle, reduce mechaical shock.
