Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated

China Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated supplier
Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated supplier Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated supplier Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated supplier Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated supplier

Large Image :  Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated

Product Details:

Place of Origin: china
Brand Name: Haida
Certification: ISO,CE,.......
Model Number: HD-E808

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Delivery Time: 15 days after receive the order
Payment Terms: D/P, Western Union, MoneyGram
Supply Ability: 300 sets months
Contact Now
Detailed Product Description
PH: NSS ACSS6.5~7.2 CASS 3.0~3.2 Power: 1A C220V
Certificate: ISO9001:2008 Design Criteria: CNS, JIS, K5400, Z2371, ASTM
Spray Quantity: 1.0~2.0 Ml / 80cm2 / Hr Warranty Period: 12 Months
Brine Temperature: 35°C±1°C Test Chamber Temperature: NSS ACSS 35±1°C CASS:50±1°C
Temperature Precision: ±1°C Color: White

Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , Certificated

Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS CertificatedHD-E808-60 Salt Spray Chamber.pdf

Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated

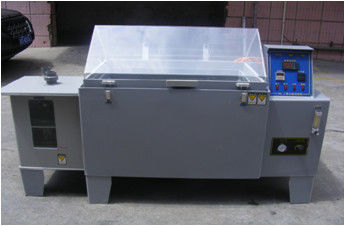

Product image & Description:

SO2 Salt Spray Tester involves a salt spray fog with the addition of Sulfur Dioxide (SO2) gas directly into the salt spray testing chamber or cabinet. The salt spray solution is defined either by mutual agreement or by the specifications covering the material or product to be tested.





feature:

1. The interior and exterior sides of the chamber are made of reinforced plastic (or FRP)

    by compression molding, which are acid-proof, alkali-proof, impact-proof and easy to clean.



2. With an imported quartz nozzle, it has the characteristics of smooth interior wall, accurate

    angle and no crystalline in long-time spraying.



3. Distinctive spring door hinge design makes the chamber door easy to open and close. And

   there is no leak from the baths around.







Image:

Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated

Programmable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS CertificatedProgrammable Salt Water Spray Test Corrosion Test Equipment for Lab , SGS Certificated





Chamber material:

1, Chamber shell: 8mm corrosion resistance PVC plate, 85℃high temperature resistance.

2, Sample holder: fiberglass rod, corrosion resistance.

3, Pressure barrel: 2.0mm SUS#304, seamless joint.

4, Heater: titanium alloy electric heater, corrosion resistance.

5, Machine support: SECC iron with paint spray, have wheels for sliding.

6, Chamber cover: with imported 8mm PVC acrylic transparent observation window.

7, Cover open method: SNS pneumatic method for uniform performance.

8, Machine cover and body are sealed with water to avoid gas leakage.

9, Gas pipe uses corrosion resistance silicone tube.

10, Equip with double gas filtration device to ensure the discharge gas is not harmful for environment.







Control system:

1, Temperature and humidity controller: imported Korea intelligent controller

2, Sensor: PT100 test sensor

3, LED digital display

4, Full digital multiple warning protection system, anti-dry and anti-over temperature

5, With SSR output, imported relay contact

6, Multiple time mode, S, M, H can freely switch

7, Multiple control method for Salt and SO2 switch

8, With defog and desulphuration function to ensure salt and SO2 avoid leakage

9, With flow meter to control the SO2 concentration by rate of flow and time

10, With SO2 filter device, sodium hydroxide and active carbon double filter system to avoid SO2 leakage.









Product parameters:

Model

HD-E808-200-1

Internal dimension (L×W×H)

2000×1000x800 mm

External dimension (L×W×H)

3600x1350x1700 mm

Temperature Range

Room temperature ~50℃

Humidity range

>95%R.H

Temperature Fluctuations

≤±0.5℃

Temperature Uniformity

≤±2℃

SO2 input method

Steel cylinder method, automatic

SO2 discharge method

With SO2 filtration device, Sodium hydroxide and activated carbon for double filtering system

SO2 concentration

A quantity of 2L SO2 in a test chamber volume of 300L (0.67%)

SO2 concentration control method

Controlled by flow meter

Test Chamber Temperature

Salt Spray Method (NSS ACSS) 35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃

Saturated air Barrel Temperature

Salt Spray Method (NSS ACSS) 47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃

Brine Temperature

35℃±1℃

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS 6.5~7.2)
Corrosion-resistant Testing Method (CASS) 3.0~3.2

Brine Tank Capacity

40L

Power

Three phase, AC380V, 50Hz

Multiple Safety Protection Devices

Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

Accessories

Testing Salt/ Measuring tank/Nozzle Equipment x 1 set

Standard

ASTM B117, DIN 50018…























Main components:

Controller x 1set

Sensor x 2pcs

Pressure regulation valve x 2pcs

Spray magnetic valve x 1pc

SO2 feeding magnetic valve x 1pc

Cyclic motor x 1pc

Desulphuration water pump x 1pc

Water inlet magnetic valve x 1pc

Water level meter x 4pcs

Heater x 1pc

Air filter x 1pc

O shape sample holder x 16pcs

V shape sample holder x 12pcs

Sodium chloride x 2 bottles

Measuring tank x 1pc

Hydrometer x 1pc

User manual x 1pc

Operation video x 1pc
