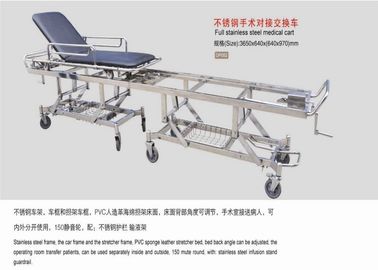

Patient Transfer Trolley For Connecting In Operating Room Stainless , Steel Patient Trolley

China Patient Transfer Trolley For Connecting In Operating Room Stainless , Steel Patient Trolley supplier

Large Image :  Patient Transfer Trolley For Connecting In Operating Room Stainless , Steel Patient Trolley

Product Details:

Place of Origin: Zhangjiagang, China
Brand Name: MEDIK
Certification: CE, ISO13485
Model Number: YA-J2A-S

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: To be confirmed according to your order
Packaging Details: Exportation standard carton or wooden case
Delivery Time: 15-30 days
Payment Terms: T/T, L/C, West Union
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Size: 3650*640*640mm Back Section: 75°±5°
Height Adjustable: 640-970mm Load Capacity: 225kg

SS StructureTransfer Connecting Stretcher Height-adjustable For OT Room



Quick Detail:

  1. CE&ISO certified Patient Transfer Trolley For Connecting In Operating Room
  2. Stainless steel railway for linking two separate carts, which can be raised and lowered
  3. When the two small carts are adjusted to the same level, the stretcher can slide smoothly, and when the stretcher slides to any separate cart, it can be automatically locked safely
  4. An advanced centrally controlled brake system is used for both separate small carts in order to make them more stable when linking up and running





Description:

  • Patient Transfer Trolley For Connecting In Operating Room, Stainless Steel Patient Trolley
  • 1pc stretcher made of Stainless steel with vinyl cover material, with 2pcs stainless steel side rails,
  • and the back section can be lifted up to 75°by gas spring control or by ratchet system
  • 2pcs separated hand-over carts, which can prevent cross infection
  • Stainless steel railway for linking two separate carts, which can be raised and lowered for adjustment
  • When the two small carts are adjusted to the same level, the stretcher can slide smoothly, and when the stretcher slides to any separate cart, it can be automatically locked and equipped with safety device
  • An advanced centrally controlled brake system is used for both separate small carts in order to make them more stable when linking up and running





Technical parameters:



Item

Height-adjustable Transfer Connecting Stretcher For OT Room

Model

YA-J2A-S

Technical Parameters(3-Functions)

Overall size (L*W*H)

3650*640*640-970mm

Backrest max upward angle of stretcher

75°±5°

Height adjustable

640-970mm

Silent wheels with central locking system

Dia 125mm(5”)

Loading capacity

225kgs

Stainless steel side rails

2pcs, collapsible

Packing

Carton or wooden case

Side rails

2 pcs, S.S. material,anti-bacteria

I. V pole

1 pc

I. V pole sockets

2 pcs

Wheels

8 pcs

Drainage Hook

4 pcs

Mattress surface board

1 set (S.S. frame with vinyl cover)

Gas spring or Ratchet

1 pc





Competitive Advantage:



1. Professional manufacturer and supplier of hospital furniture over 20 years, and most of our products have been awarded with international CE and ISO certificates

2. Always striving the best to find out solutions for hospital furnishing, for example, ICU room, general patient rooms, operation rooms, examining rooms etc. etc.

3. Besides our own models, we also provide OEM/ODM service for some well-known brands

4. We provide 1-2 year warranties and life-time training and after-sales service
