Product Details:
Payment & Shipping Terms:
|
| Application: | Furniture|billboard Lid | Extended Long: | 100mm - 300mm |
|---|---|---|---|
| Force: | 975N | Gas: | Nitrogen |
| Material: | Steel | Product Name: | Gas Spring |
| High Light: | gas spring damper,gas shock lifts |
||

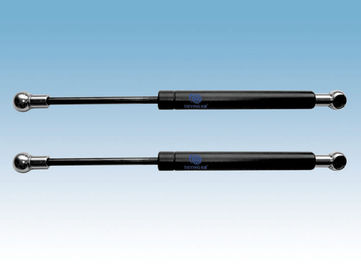

975N Gas Springs And Dampers Billboard Lid Soft Close Damper
soft close gas spring
Specifications
1. seamless steel rod
2, 2 years guarantee.
3, easy install
4, we are a factory
5, fast shipment
soft close gas spring / struts for machinery lid, light box, billboard lid.
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
Specifications:
Usage: machinery lid, light box, billboard lid.
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Tube diameter:22mm
Rod diameter:10mm Force:975N
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
100-300 | 30-100 | 4*12 | 20-200 | 30 |
301-600 | 101-200 | 6*15 | 50-200 | 50 |
601-900 | 201-300 | 8*18 | 100-800 | 60 |
901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Brief introduction:
soft close gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
soft close gas spring for machinery:
soft close gas spring for medical equipment:
