Product Details:
Payment & Shipping Terms:
|
| Application: | Furniture | Extended Long: | 300mm - 600mm |
|---|---|---|---|
| Force: | 200N | Gas: | Nitrogen |
| Material: | Steel | Product Name: | Damper|Gas Spring |
| High Light: | gas spring damper,Stainless Steel Gas Strut |
||

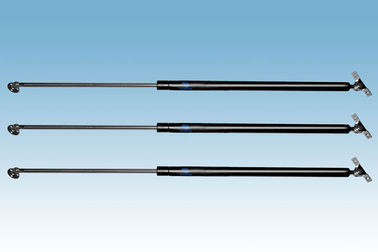

Gas Springs And Dampers 200N Nitrogen Gas Lift For Furniture
lid stay high quality gas spring
Specifications
1. seamless steel rod
2, 2 years guarantee.
3, OEM is welcome
4, we are a factory
5, reasonal price
lid stay gas spring :
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
Specifications:
Usage:light box lid, cabinet lid, machinery lid.
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Tube diameter:18mm
Rod diameter:8mm Force:200N
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
|
Extended length(mm) |
stroke length(mm) |
D1*D2(MM) |
Force F1(N) |
Fr(max) |
|
100-300 |
30-100 |
4*12 |
20-200 |
30 |
|
301-600 |
101-200 |
6*15 |
50-200 |
50 |
|
601-900 |
201-300 |
8*18 |
100-800 |
60 |
|
901-1200 |
301-400 |
10*22 |
150-1150 |
80 |
|
1201-1600 |
401-500 |
12*22 |
150-1200 |
80 |
|
500-1200 |
200-500 |
12*26 |
200-1500 |
80 |
|
500-1300 |
200-600 |
14*28 |
200-2000 |
100 |
Brief introduction:
lid stay gas spring also called mini support bar, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
Lid gas spring for electronic divics
gas spring for medical equipment:
lid stay gas spring for car hood
