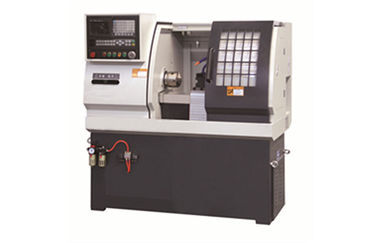

Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter

Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter
Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter

Large Image :  Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter

Product Details:
Place of Origin: China
Brand Name: ZZGC
Certification: CE, ISO9001, ISO14001
Model Number: J32 J35
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: 1000 pcs
Delivery Time: 1~2weeks
Payment Terms: T/T, L/C, PayPal, Western Union, Cash, Escrow
Supply Ability: 1000pcs per month
Detailed Product Description
Max. Swing Diameter: 195mm Voltage: 380v
Power(W): 4kw Dimension(L*W*H): 1420*1120*1750mm
Weight: 800kg X/z Repeated Position Accuracy: 0.012/0.013mm
Highlight:

CNC Lathe Machinery

,

computerised Lathe Machine

Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter







Quick Detail:



  •    Is the meter lathe upgrade products, has a very high price, wire rod.
  •    Standard confiuration: pneumatic spring collet, line cutter
  •    Optional confiuration: electric tool post, automatic feeding device,tailstock
  •    High frequency quenching rail, hardness and high wear resistance
  •    Spindle with angular contact ball bearing, high speed and high rigidity



Description:



1. Factory and office building

1)All the guide surface are performed quenching.



2) Factory covers 120,000 square meters including casting,machinning,assemble workshops, above 70

 intermediate and senior technical personel.



3) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.



4) All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses.



5)All of our products have passed the CE ISO approval



6) We implement assembly line,and the assemble workshop includes feed box team,gear box team,worktable

 team,hydraulic unit team,scrabbing team,drilling hole team,power distrubition team,daubing and painting team,

 test team and after-sale service team.



7) ERP infomation management makes our production and management more and more standardization,

networked and refinement.


2.  Usage

    suitable for small work piece with the diameter less than 32mm and the length less than 100mm to process at the high rotary speed  from the speed 150-2500 rpm.





Applications:





Widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile,
motorcycle, fastener bearings, photographic and fim machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high effiient equipment in the hardware machining industry



Specifications:



Specifications Unit J32
Maximum swing over bed mm Φ190
Maximum swing over cross slide mm Φ80
Maximum processing length mm 200
Thu-hole dia of spindle mm Φ37
Drawing pipe dia. mm Φ32
Spindle speed rpm 150-2500
Work piece clamping way   Pneumatic living spirit type clamp clamping
Spindle motor power kW 3
Inverter power kW 4
X/Z axis torque N·m servo 4/4
X/Z axis fast feeding speed m/min 8/10
Tool post type   gang tool type post
Tool numbers   4 pieces
Tool bar section mm 16*16
Tailstock type   no
Guideway   make guide
NW kg 800
Machine dimensions (L*W*H) mm 1450*1100*1600



Item J35
Max. swing dia. over bed 250mm
Max. swing dia. over cross slide 116mm
Max. processing length 320mm
Spindle nose A2-5
Through hole dia. of speed 48mm
Through hole dia. of drawing pipe 40mm
x/z repeated position accuracy 0.012/0.013mm
x/z travel 300/320mm
x/z rapid feeding speed 5/10m/min
Spindle speed 150-2200rpm
Tool holder 4-station raw tool
Main motor power 3kw
Dimension 1420*1120*1750mm
Net weight 800kg



Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter 0





Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter 1



Feature



1. High compatibility -- The CNC programming system adopts the international ISO code and keyboard input, could realize data transmission with PC by RS232 communication port.

2. High and long term stability--Machine cast is of hardness over HRC45 degrees  after HRC hardening

3. Higher rotation speed and higher rigidity ---Spindle bearing adopts the high-precision angular contacting bearing; specially designed pre-load ensures the

higher rotation speed and higher rigidity.

4. Outstanding dynamic performance and high positioning accuracy --The carriage in both vertical and horizontal direction is driven by highprecision ball screws, which has satisfactory dynamic

performance and high positioning accuracy.
