Applications: | Designed To Transport Oxygen Cylinder And Acetylene Cylinder | Casters: | Two Swivels And Two Rigid |
---|---|---|---|
Advantage: | Adjustable, Spring-locked Carriages Permit Cylinders To Be Carried At A Comfortable Angle (45°) | Capacity: | 120-200kg |
Construction: | Painted Tubular Steel Frames | Package: | Strong Export Package With Carton Box |
High Light: | cart dolly hand truck,material handling trolley |

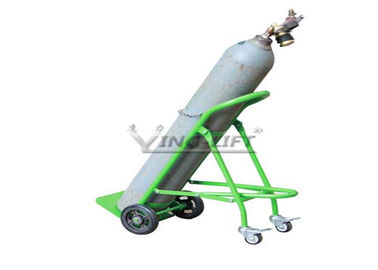

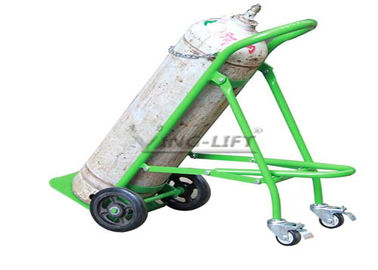

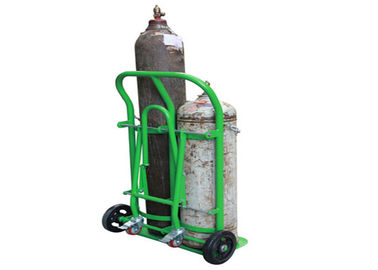

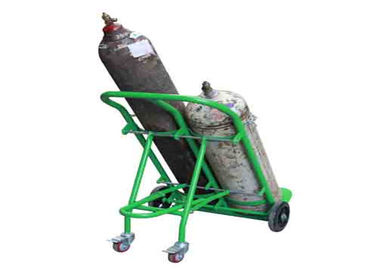

Fold-down Cylinder Hand Truck, Cylinder Hand Trolley, Cylinder Dolly to Lift and Transport Compressed Gas Cylinder Capacity 120kg to 200kg
General Description
Available styles include single or double cylinder hand trucks, YING-LIFT Cylinder Hand Trolley are solidly manufactured for long lasting durability and dependability to provide easy and secure handling and transport of fuel or oxygen cylinders. Sturdy tubular steel frame construction, safety holding chains and solid rubber wheels provide easy mobility and maneuverability. The rear two castors are with spring lock mechanism for conversion from two to four wheel mode for increased stability. TY120 is single cylinder dolly with 120kg capacity; and TY130 is double cylinder hand trucks with 200 kg capacity.
Main Feature
1. Adjustable, spring-locked carriages permit cylinders to be carried at a comfortable angle (45°);
2. Casters: two swivels and two rigid;
3. Designed to transport oxygen cylinder and acetylene cylinder with ease;
4. Easy fold-down for storage and shipment;
5. All steel metal construction;
6. Solid rubber wheels are with wear-resisting usage;
7. Trucks have painted tubular steel frames, cylinder restraining straps, and solid rubber wheels;
8. Makes cylinders easy to move;
9. Secure tanks with web strapping;
10. Lift using simple tank manual lifter or hand winch devices;
11. This product ships in 3-7 business days;
Technical Data
Name |
Single Gas Cylinder Hand Truck |
Double Gas Cylinder Hand Truck |
|
Model |
TY120 |
TY130 |
|
Material |
/ |
Carbon Steel |
Carbon Steel |
Load capacity |
kg |
120 |
200 |
Cylinder diameter |
mm |
Ø140-300 |
Ø140-300 |
Solid rubber wheel |
mm |
Front Ø200*40 / Rear Ø75*30 |
Front Ø200*40 / Rear Ø75*30 |
Net weight |
kg |
18 |
25 |
Application
YING-LIFT fold-down cylinder hand trucks are mostly used to carry and move cylinders, and the collapsible trucks make cylinder handling safe and convenient. It has four wheels-- two swivels and two rigid. Hand Trucks come in variety of types and vary greatly in size, materials, wheel types, structural designs and carry capacity to suit different purposes.
Competitive Advantage:
1. Easy folding, can save storage space when not in use;
2. Single and double cylinder trucks to meet your specified needs;
3. Mass in stock and fast delivery;
4. Available home-delivery, and the tracking # will be sent to you upon shipment;
5. Safety strap and cinch buckle;
6. Fully welded construction;
7. Quality powder paint finish for long service life;
8. Industrial, medical and commercial use;
