Product Details:
Payment & Shipping Terms:
|
Application: | Furniture|Toolbox | Gas Resource: | Nitrogen |
---|---|---|---|
Life Time: | 100000 Times | Load Type: | Gas |
Material: | Seamless Steel | Product Name: | 200n/20kg Furniture Damper Spring Gas Charged Lift Supports For Advertising Light Box |
Rod Color: | Chromate | ||
High Light: | Traction Gas Springs,Small Gas Spring |

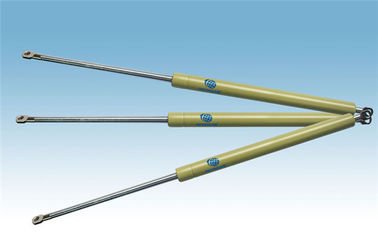

200n/20kg Furniture Damper spring Gas Charged Lift Supports for advertising light box
Specifications
Reasonable price, excellent quality,delivery soon,good service.
1. Professional in manufacturing damper
2. Nitrogen and oil filling inside
3. High quality, competitive price, fast deliver
Extended Length:500mm
Stroke Length:200mm
Tube Diameter:10mm
Rod Diameter:22mm
Force:200N
End fittings : Metal brackets .
All the products can be customized
This type of damper widely used in cabinet ,case ,bed ,table and chairs .in order to open lid as convenient as desired .
Fully damped springs contain separator pistons .This separate the oil from the gas inside the spring ,so that the damping can be very closely controlled in either compression or extension .
A release valve can be included so that the user can be adjust the spring force as requied .
if you want ,pls let us know the parameters .
Technical parameter for choice
Type | Tube dia | Piston rod dia | stroke | Force(N) |
Compression gas spring |
12 | 4 | 20-50 | 40-200 |
15 | 6 | 50-150 | 40-300 | |
18 | 6/8 | 50-250 | 100-600 | |
19 | 6/8 | 50-250 | 100-600 | |
22 | 8/10 | 50-350 | 100-800 | |
25 | 10/12 | 50-450 | 100-1000 | |
27 | 10/12 | 50-700 | 100-1200 | |
28 | 12/14 | 50-700 | 100-1500 |
Features:
Gas
Nitrogen filled inside
Color
Black ,silver or as clients' request
Quality
We can provide fatigue test report ,Our products can open and close 100,000 times.
Not leak oil ,Our paint is passed ROHS test
When the gas spring is up and down ,it's soomth opration without noise.
Safe and easy installation
Packing
Standard export packing or as request
Delivery Term
FOB & & EXW
Delivery Lead Time
7 days after deposit
Shipment
We can accept your appointed forwarder
Usage
furniture
MOQ
100pcs
Pictures:
Due to stable high quality and competitive price , more and more clients chose to cooperate us .
Strict 100% Final Quality Control rules Effectively improve product quality .
Thanks for our harding work people , they make sure our goods more and more popular in the world .
Nowadays, 40,000 pcs goods shipped out per week .
If you want to know more about us, please do not hesitate to contact us .
