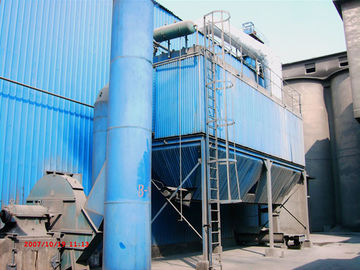

High Efficiency Dust Collection Equipment Effective For Cement Mill

High Efficiency Dust Collection Equipment Effective For Cement Mill
High Efficiency Dust Collection Equipment Effective For Cement Mill

Large Image :  High Efficiency Dust Collection Equipment Effective For Cement Mill

Product Details:
Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 6000-500000.00USD/PCS
Packaging Details: container
Delivery Time: 45 days
Payment Terms: T/T ,L/C
Supply Ability: 200 sets /month
Detailed Product Description
High Light:

dust collector bag

,

dust collector systems

Baghouse Pulse Jet Dust Collector Equipment For Cement Mill / Woodworking





ECOGRACE are the leading manufacturer specialized in designing and manufacturing baghouse dust collectors in China with the over 10 years experience of manufacturing high quality bag filter dust collector. We provide solution for standard working conditions bag filter dust collector, and special solutions for high pressure, high temperature and high corrosive working conditions.



ECOGRACE Bag Filter Dust Collector is widely applied in Asphalt mixing site, cement plant, gypsum plant, steel plant, coal fired boiler,  etc.



ECOGRACE always providing the cost-effective filtration solutions for all of our clients.



About the series of  Low Pressure Long Bag Pulse Dust Collector



Advantageous characteristics of  :



         1. ECOGRACE BAG FILTER DUST COLLECTOR, it has taken the temperature gas to lower temperature gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.

         2. The longer filters dust collector take smaller area which will increase the processing capacity, therefore it is more convenient for reconstruction of old factories.

         3. ECOGRACE take separate chamber off line dust cleaning in bag filter dust collector design and it is with high efficiency and few secondary flour dust attachment, meanwhile it can effectively save the energy consumption. Such design effectively protect the filter bags and pulse valve and save the operation and  maintenance cost for the dust collector system.

         4. The filter bags will be replaced without stop the filtration system.

         5. ECOGRACE Dust Collector with ECOGRACE made filters which is made with snap band with good sealing, easy for assemble and replacement and good tightness.



         6. ECOGRACE take Air leaking detecting with oil and to keep all the system  air leaking  <0.5%.

         7. Our Bag Filter Dust Collector is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.





Advantageous characteristics

         1. It has modern design, it uses lower gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.

         2. It uses long filter bags and it has smaller floor area in case of equal processing capacity, therefore it is more convenient for reconstruction of old factories.

         3. It uses separate chamber offfline dust clearing with high efficiency and few secondary flour dust attachment, in the meantime, it can effectively reduce the equipment energy consumption, the fatigue level of filter bag and pulse valve is correspondingly reduced and the service life of filter bag and vane is prolonged by several times and equipement operation cost is remarkably reduced.

         4. The overhaul and bag replacement can be carried out for separate chambers under the condition that system blower and system run normally.

         5. The filter bag inlet used spring tension structure, it is convenient to disassemble & assemble and it has good tightness.

         6. The case uses airtightness design and it carries out leak detecting with oil and reduces air leak to the maximum extent.

         7. The whole set of equipment is controlled by PLC to realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.



Description:

Cement kiln applied Bag filter ,long bag pulse jet ,high  efficiency,

A high collection efficiency, small footprint, stable, reliable performance, easy maintenance of large bag filter equipment.

It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter  dust removal equipment. DMC series of large pulse length bag filter is our  advanced technologies based on thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter.



Applications:

1. iron, steel mill, ferroalloy plant, refractory plant, foundry, power plant of flue gas dedusting system etc.

2 Wastes incinerator, coal fired boilers, fluid fluidized bed boiler flue gas filter etc.

3 Asphalt mixing, building materials, cement ceramic, lime and gypsum and other production sites.

4 Aluminum electrolysis, lead and tin, zinc, copper and other rare metal smelting gas filtering,superfine material recovery, liquid and solid separation.

5.thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace



Specifications:

  Model



GDMC154-2X11

GDMC154-2X12

GDMC154-2X13

GDMC154-2X14

GDMC154-2X15

Treatment wind capacity (m3/h)

488000

732000

532000

798000

577000

865000

621000

931000

665000

1000000

Filtering area (square meters)

10208

12064

12064

12992

13920

Filter bag quantity (pcs)

diameter 130X6000mm

3388

4004

4004

4312

4620

Filtration velocity (m/min)

0.8-1.2

Resistance (Pa)

less than 1500

Entrance dust content (g/N m3 )

less than 1000

Exit emission concentration (mg/ N m3 )

less than 50 (filter bags made in China);less than 30(filter bags made in foreign countries)

Negative pressure sustained by dust collector (Pa)

8000

Dust cleaning pressure

Pressure (Mpa)

0.2-0.6 ( diameter 3 inch Flood Pulse Valve used)

Compressed air

Gas consumption (m3/min)

5.0

5.0

5.5

6.0

6.0

Power consumption (KW)

30

30

30

30

30

Equipment weight (T)

311.7

340.6

369.2

398.5

424.7





Features:


1, using the pulse jet cleaning technology, cleaning ability, dust, high efficiency, low emission levels, air leakage rate is small, low energy consumption, steel consumption less, covers an area of low, stable and reliable, good economic returns. Used in metallurgy, building materials, machinery, chemicals, power, light industry, smoke dust.
2, the cabinet adopted the design air tightness, tightness, and check the door seal with excellent material, the production process to kerosene leak, air leakage rate is very low.
3, the inlet and outlet air duct layout compact, air resistance.
4, using the sub-room air pulse jet cleaning stopped, cleaning cycle is long, low consumption, can be doubled to improve the life of the filter bag and valve.
5, can be achieved without stopping the machine for bags, repair does not affect normal operation.
6, by way of the upper pumping bags, bags for improved operation and running.
