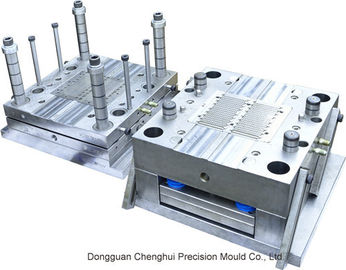

Custom Gas spring high Precision mold , LED mould Hot Runner

Custom Gas spring high Precision mold , LED mould Hot Runner
Custom Gas spring high Precision mold , LED mould Hot Runner

Large Image :  Custom Gas spring high Precision mold , LED mould Hot Runner

Product Details:
Place of Origin: China
Brand Name: Chenghui
Certification: ISO9000:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooded case
Delivery Time: 30days
Payment Terms: T/T
Supply Ability: 20 sets
Detailed Product Description
Material Using: ELMAX SKD11,SLD,DC53,ASP-23,ASP-60,S45C,S55C.AL7075 Etc . Spare Parts: Standard Parts
Gas Spring: According Customer Requirement Mould Parts Precision: 0.002-0.02mm
Dimension: Depend On Customer's Product First Trial: 30 Days After Stamping Moulds Drawing Confirmed
Quality Assurance: We Guarantee The Quality. From Raw Material Inspection To Delivery Of The Completed Product Our QC Oversees Every Stage Of Production
High Light:

multi cavity mould

,

hot runner mould

Precision Plastic LED lead Frame mould for LED injection mould



Material using

imported Tungsten Carbide (CD650,V3,KD20) SKD11,SLD,DC53,ASP-23,ASP-60,S45C,S55C.AL7075 etc .

Spare parts

Standard parts

Gas spring

According customer requirement

Mould parts precision

0.002-0.02mm

 Cavities:

Multiple  cavity

Type of Gate

Hot Runner Gate

Size

Dimension: depend on customer's

First Trial

15 days after stamping moulds drawing confirmed

Quality Assurance

Our QC check key point and size of every producing step and ensure finished mould fit in customer requirement.

Design software

NX(UG),ProE,CAD,CATIA,Solidwork

Packaging Detail

Wooden case, pallet, box, carton,





Design and Production Flow



No.

step

1

Preliminary communication: customer technical communication → get Customer's Samples and better got 2D/3D

2

Design details: plastic injection basic information such as injection machine automotive degree, injection ,each product finish time.Design the mould parting line, cavity and core ,punch.

3

Design the mould parting line, cavity and core ,punch.

4

Confirmation mould structure and process.

5

Mould part processing

6

First trial and then send you video, samples to confirm.

7

Adjust; slightly adjust and modify according customer plan

8

mould packing wood case ship to customer.

9

After sale communication.





Our design complete product prototype and stamping die confirmation



Chenghui Precision Mould have more than 60 professional and skilled technicians ;10 master of optical profile grinding ,CNC milling, mirror EDM, wire EDM who were more than five years experiences working in foreign-owned enterprise. These talents ensure our product satisfy customer requirement quickly



Our experinced desing enginer have been working more than 10 years in the LED lead frame mould.field. Many chiese famous stock comapny use our precision mould and gain good repution. We keep on stimulus and and design innvoating product .





Advantage



1. Interlligent designer engineer and abundant experienced professional mould master and techniacl.



2. We  specialize in  precision progressive stamp die,  precision progressive stamp dieparts, precision plastic mould part, LED lead frame part.



3. Advanced equipment ensure process accuracy reach to 0.001mm.



4. Superior material import form America, Japan, Sweden, etc. assure mould long life and more press stroke.



5. Efficient soultion strives to reduce the cost for our customer.



6. Custer oriented: any questions can be solved at the first time





About us



Dongguan Chenghui Precision Mould specialized in high precision and high quality various types of led lead frame mould, progressive stamping die, precision injection mold parts. With the most advanced equipment Switzerland Mikron High Speed CNC (Mikronhsm 500LP) ,Japan Sodick AD30Ls EDM,WAIDA SPG type R-type CNC optical projection grinder, Sodick AQ400 wire cut EDM, J/G cornidates grinder, flat surface grinder, we produce high quality and precision products for our customers at fair and competitive prices .
