Industrial Hydraulic Steel Plate Edge Milling Machine For Seam Welding Line

Duży Obraz : Industrial Hydraulic Steel Plate Edge Milling Machine For Seam Welding Line

Szczegóły Produktu:

Place of Origin:	China
Nazwa handlowa:	H-WELDING
Orzecznictwo:	CE
Model Number:	SXBJ-12

Zapłata:

Minimum Order Quantity:	1 Set
Cena:	negotiable
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Kontakt

Szczegółowy opis produktu

Product Name:	Hydraulic Powered Edge Milling Machine	Application:	Steel sheet milling
Press type:	Hydraulic power	Milling length:	12m
Milling head:	Taiwan E-long	Milling head power:	7.5kw *2
Hydraulic jack NO.:	12	Milling thickness:	6-60mm
Milling angle:	0°～45° /-45°～0°	Beveling type:	X,J,V
Podkreślić:	large milling machine , beveling machine

Hydraulic Powered Edge Milling Machine With Milling Speed 0.1m/min - 1.0m/min For Seam Welding Preparation

Specifications:

Model Main parameter	TX 32A Milling head		TX-40A Milling head
	32YXBJ-15	32XBJ-18	40YXBJ-15	40YXBJ-18
Max. Part length	15M	18M	15M	18M
Plate thickness	6-160mm
Plate width(the machining side is parallel )	400-1000mm
Milling angle	0^o milling angle is not adjustable
Milling head model	TX-32A		TX-40A
Milling head motor power and revote speed	5.5KW,1440r/min		7.5KW,1440r/min
Facer diameter	D=125-320mm(out factory with Ø200 facer )		D=160-400mm(out factory with Ø200 facer )
Main axes revote speed	125-630r/min7 grade		100-630r/min2 grade
Milling transverse traveling stroke	400mm
Milling speed	0.1-1.0m/min
Milling free speed	Vfast =5m/mi rapid backing motor driving
Press way	Hydraulic powered (about 3.5mpa) or gas cylinder powered (6kg/cm2)

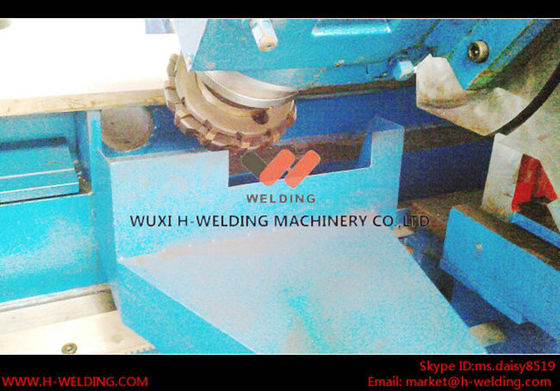

Industrial Hydraulic Steel Plate Edge Milling Machine For Seam Welding Line 0

Description:

In order to positioning the work piece correctly, the lather rail side has the stop rack unit, which can be pulled out manual and retracted into the lather body after the work piece clamping. You can see as the left picture.

Applications:

Suitable facer diameter	D=φ125-φ250mm(with φ125 standard facer when ex-work)
Spindle rev.	125—630r/min(6 grade, exchange gear)
Milling work piece feeding speed	100-1000mm/min

Competitive Advantage:

It has the automatic hydraulic press jack and manual screw jack at the down position and press the work piece reliable, which can avoid the milling shaking and decrease the noise.
The hydraulic cylinder press work piece, beam has normal spring deformation and spring upward, after release the hydraulic cylinder it will reset.

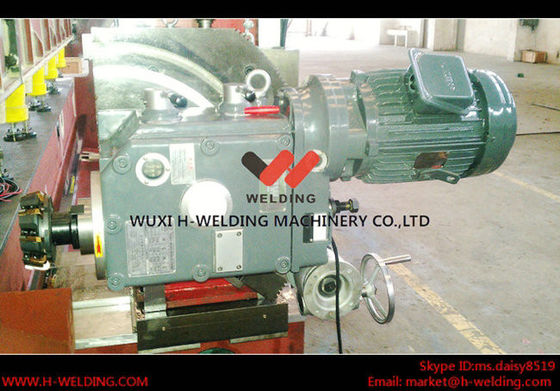

Industrial Hydraulic Steel Plate Edge Milling Machine For Seam Welding Line 1
