Application: | WheelChair|Treadmill|Chair|Automobile | Feature: | Lockable |
---|---|---|---|
Inside: | Nitrogen | Life Time: | 100 |
Load Type: | Gas | Material: | Steel |
Product Name: | Gas Spring | ||
High Light: | gas pressure spring,Gas Lift Strut |

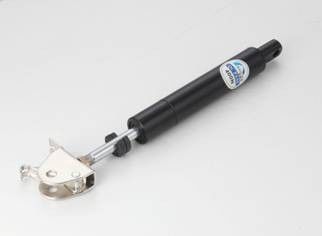

Nitrogen Gas Lift Steel Lockable Gas Spring For Furniture
controlled gas spring/gas spring chair
Specifications
1, Shaft:chrome /QPQ
2, 2 years guarantee.
3, easy install
4, we are a factory
5, rigid lock type
gas spring Chair
gas spring chair for office chair/sofa
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
Specifications:
Usage: office chair / sofa
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver ,white or other color
Shaft finishing: Chrome/QPQ
Tube diameter:26mm
Rod diameter:10mm Force:350N
Extended length:3850mm
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
100-300 | 30-100 | 4*12 | 20-200 | 30 |
301-600 | 101-200 | 6*15 | 50-200 | 50 |
601-900 | 201-300 | 8*18 | 100-800 | 60 |
901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Brief introduction:
gas spring chair also called lockable gas spring/controlled gas spring, it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
gas spring chair for office chair/sofa
