400KN aluminum foil container production line with SIEMENS PLC 650mm

400KN  aluminum foil container production line  with SIEMENS PLC 650mm
400KN  aluminum foil container production line  with SIEMENS PLC 650mm

Large Image :  400KN aluminum foil container production line with SIEMENS PLC 650mm

Product Details:
Place of Origin: China
Brand Name: LOVE
Certification: CE,ISO,SGS,TUV
Model Number: Aluminum foil container making machine
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: In wooden case
Delivery Time: 30days depend on quantity
Supply Ability: 10sets/month
Detailed Product Description
Product Name: Aluminum Foil Container Making Machine Driven Type: Electric And Pneumatic
Color: Can Be Request Function: Punch Press
Usage: Metal Forming Machine PLC: SIEMENS
Speed: 40-70PCS/Stroke Power: 5.5-7.5KW
High Light:

aluminum foil container production line


Aluminum Foil Container Machine

Fully automatic aluminum foil container making machine / aluminum foil container production line





Used for producing different sizes of aluminum foil containers




Our Service:

Warranty is one year , and we will provide you technical support forever.

- Installation and training in customer’s place is available . buyer should pay our engineer’s round way air ticket , food , room and daily pay 70usd/day/person . it will take about totally about 5days




Specification of High Accuracy Press:

Nominal pressure :  400KN
Slide Block Stroke:100-260mm
slide Stroke per minutes :70-50 times
Maximum Die Set Height :270-400mm
Die Set Height Adjustment:60mm
Slide Bottom Size:410X340mm
Stemhole Size:60mm* 60mm
Bolster  Surface Size:810*440mm/990*750mm
Total power:5.5KW
Weight:3800-4500 kg
Overall Dimension Before Changed :1440*1080*2300mm
Overall Dimension after Changed :1550*1150*2500mm




Specification of Aluminum Foil Feeding Machine:

Item number XWSL-55
Max.width of ROLL 550MM
Max.unwind roll diameter 600mm
feeding speed 0-35m/min
feeding length 20-999mm
feeding Accuracy +-0.3mm
Working voltage 380/220v
Total power 1kw
Weight of machine 850kg
Dimension 2000*1300*900mm



Competitive Advantage:

(1) This full making machine work automatically. Worker control and regulate this plant through electric control panel, including the air-pressure and electricty.
(2) The Max. Width of decoiler is about 650mm. The Max. Diameter of foil roll is 600mm.
(3) There is an auto-lubricator on the feeder, which can lubricate aluminium foil automatically.
(4) The foil feeder provides the supply of right quantity and length of aluminium foil, and it is controlled by computer, which assure a high-precision step.
(5) The press can be equipped with single cavity or multi-cavity moulds for producing wrinkle-wall or smooth-wall container. It is equipped with a mould lifter which can lift and low the mould automatically when change a mould.

(6) We can design and manufacture different machines on different customers' request.






1. Production line by the feeder, precision presses, molds (optional), waste collection system, consisting of the finished collection device.


2. The production line adopts PLC program control, gas / electric integration of centralized control, safe and reliable. Feed length and production speed and other parameters is simple, automated production.


3. Feeding operation, stamping, waste collection, automated product out of the mold.

4. Precision presses using welded steel body rigidity; and heat treated to eliminate the structural stresses precision machining aspects of stability, high reliability; using steel collapsed style fuse safe and reliable.

5. Feeding system using stepper control, feed length can be set arbitrarily accurate dimensional accuracy in the range of 20-999mm.





A: Are you a manufacturer?
B: yes, we're manufacturer and produce aluminum foil products & it’s equipment with good quality and competitive price

A: Can you do the machines’ appearance design for us?
B: Yes, we have professional team with rich experience in machine design and manufacturing.

A: How can I get a sample to check your quality
B: After price confirmation, we sincerely invite you to our factory to visit, I am representing our all staffs to welcome your coming for learning and checking our operation and production

A: How about warranty?
B: Warranty is 1 year since the machine is arrived in buyer’s place

A: what about the service?
B: During the warranty time, if the wearing parts have been damaged by non-person or can not use, seller will send the spare parts to buyer for free, but buyer have to bear the transportation charge.

A: How about the technical support?
B: Technical support supplied by seller forever

A: What are the terms of payment and currencies do you accept?
B: T/T or L/C is accepted, currently we appreciated your payment through USD,EUR, RMB

A: which type of aluminum foil container machine I should take ?
B: Generally we suggest 45T and 63T

   45T is suitable for making the container size maximum :300*300*50mm (L*W*H)
   63is suitable for making the container size maximum :350*350*60mm (L*W*H)
   45T can make 250, 450 ,750 ml container with two cavity
   63T can make 250, 450 ,750 ml container with three cavity
A: Delivery time :
B:  60days , all press we use is from Yangli brand , it’s best brand in China , the press delivery time is 50days , that’s why our whole machine’s delivery time is 60days .  if only mould , delivery time is 45days . and our boss is mechanical and mould engineer himself , he will control the machine directly , so don’t worry about the quality

A: Does the material need lubricating oil?
B: yes , the lubricating oil is very necessary , and the oil is food grade , it is very special , after the order is confirmed , we will provide you the oil supplier’s contact information . and in our machine , there is lubricating system , you can put oil on the oil tank directly .
it need oil with one barrel , one barrel is 170kg , price is about 580usd/barrel .
A.Where I can get the aluminum foil raw material ?
B.we will provide you some material suppliers , you can contact them directly for comparing .
Material specification :
ALLOY -3003, Temper-H24 Or ALLOY -8011, Temper-H22
After order is confirmed , we will make drawing for the mould , and we will calculate the material thickness and width , then I will inform you ,then you can order the raw material




400KN  aluminum foil container production line  with SIEMENS PLC 650mm 0

Aluminum foil container mould




400KN  aluminum foil container production line  with SIEMENS PLC 650mm 1

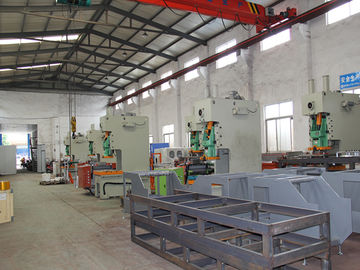

Production workshop for aluminum foil container making machine




Aluminum foil container production line, 45T aluminum foil container making machine
