Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel And Per Request | Steel Grade: | E155 E195 E235 E275 E355 |
|---|---|---|---|
| Size Range: | O.D.:6-350mm W.T.:1-35mm L:max12000mm | Applications: | For Auto Industry/for Machinery Use/Oil Cylinder Tube/Motorcycle Shock Absorber Auto Shock Absorber Inner Cylinder/Telescopic Cylinders/Jack Lifting Systems |
| Shape: | Round | Standard: | EN10305-2 |
| Production Method: | Drawn Over A Mandrel (DOM) | Characteristic: | Precision |
| High Light: | Drawn Over Mandrel Steel Tube,DOM Metal Tubing |
||

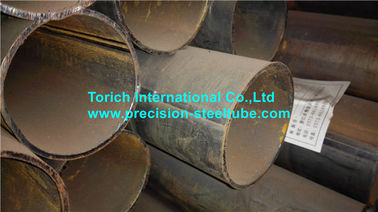

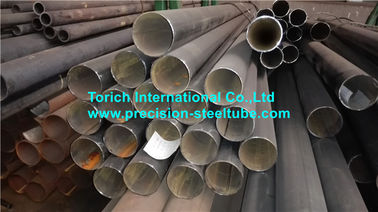

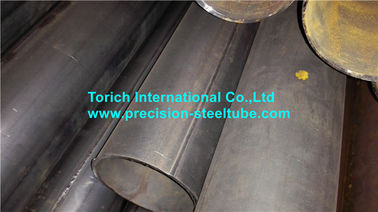

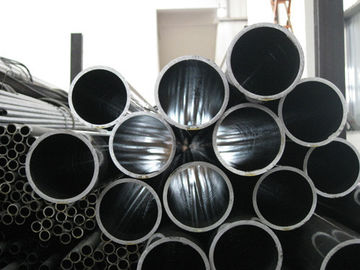

EN10305-2 Welded Precision Cold Drawn Steel Tubes
Applications:
Description:
ERW+ DOM
The tubes are manufactured from electric welded pre-tubes by cold drawing or other suitable processes.
The tubes not include welds used for joining lengths of flat rolled strips prior to forming the pre-tube
Description:
Mechanical tubing made from hot or cold-rolled steel.
Covers electric-resistance-welded low carbon steel tubing for use as mechanical tubing
Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
Steel Grade and Chemical Compositions
| Steel Grade | C | Si | Mn | P | S | |
| Steel Name | Steel Number | max | max | max | max | max |
| E155 | 1.0033 | 0.11 | 0.35 | 0.70 | 0.025 | 0.025 |
| E195 | 1.0034 | 0.15 | 0.35 | 0.70 | 0.025 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 |
| E275 | 1.0225 | 0.21 | 0.35 | 1.40 | 0.025 | 0.025 |
| E355 | 1.0580 | 0.22 | 0.35 | 1.60 | 0.025 | 0.025 |
| Mechanical properties at room temperature | |||||||||||||
| Steel Grade | Minimum values for the delivery conditiona b | ||||||||||||
| Steel Name | (+Cc) | (+LCc) | (+SR) | (+Ad) | (+N) | ||||||||
| Rm Mpa | A % | Rm Mpa | A % | Rm Mpa | ReH Mpa | A % | Rm Mpa | A % | Rm Mpa | ReHe Mpa | A % | ||
| E155 | 1.0033 | 400 | 6 | 350 | 10 | 350 | 245 | 18 | 260 | 28 | 270-410 | 155 | 28 |
| E195 | 1.0034 | 420 | 6 | 370 | 10 | 370 | 260 | 18 | 290 | 28 | 300-440 | 195 | 28 |
| E235 | 1.0308 | 490 | 6 | 440 | 10 | 440 | 325 | 14 | 315 | 25 | 340-480 | 235 | 25 |
| E275 | 1.0225 | 560 | 5 | 510 | 8 | 510 | 375 | 12 | 390 | 21 | 410-550 | 275 | 21 |
| E355 | 1.0580 | 640 | 4 | 590 | 6 | 590 | 435 | 10 | 450 | 22 | 490-630 | 355 | 22 |
Note: Special steel grade is also available, according to customer request.
Test Methods:
Tensile test
Flattening test
Drift expanding test
Dimensional inspection
Roughness measurement
Visual examination
Not-destructive testing
a. Test for longitudinal imperfections-
- Eddy current test - EN10246-3, level E3
- ultrasonic testing - EN10246-7, level U3
b. Leak-tightness
- Non-destructive testing for verification of leak-tightness shall be carried out in accordance with EN10246-1
For Application of:
EN10305 Consists of the following Parts under the general title " Steel tubes for precision applications - Technical delivery conditions "
Part 1: Seamless Cold Drawn Tubes
Part 2: Welded Cold Drawn Tubes
Part 3: Welded Cold Sized Tubes
Part 4: Seamless Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems
Part 5: Welded and Cold Sized Square and Rectangular Tubes
Part 6: Welded Cold Drawn Tubes for Hydraulic and Pneumatic Power Systems
