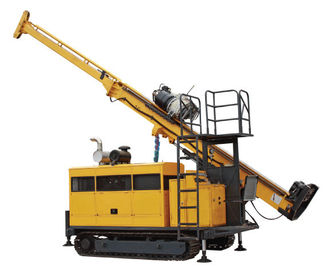

Hydraulic Core Drill Rig For Mining ,Mineral exploration Drilling Machine HYDX-4



Mineral exploration drilling rig HYDX-4 could substitute expensive famous products.



It could be applied to exploration and prospecting of mineral, geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.



I.Brief Introduction

The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It is also the developing direction of drilling technique and drilling equipment in China. Under these circumstances,



SINOCOREDRILL has developed the HYDX-4 core drill rig successfully according to the situation of China. This type of drill rig could substitute imported products. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries. The drill rig is equipped with a series motor driving pump. The feeding and lifting of rotator are driven in the structure of cylinder directly pushing, with a 3.5m(11.5 feet) stroke.



The rotation of spindle is driven by a single engine. It has four mechanical shifts of range of speeds, and the speed could be adjusted hydraulicly with stepless change.



The rig is simple in structure. It is light and easy for transference; the mast has the functions of sliding and touching ground; the spindle lifted and lowered with hydraulic cylinder; it could be folded for transport and relocation. The spindle hole is in large diameter.

The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world.



Main Parameters:



Diesel Engine

Model

Cummins 6BTA5.9-C180 (turbocharged and charge water cooled)

Displacement

5.9L (1.56 US Gallons)

Power

132Kw (180HP)

Rated RPM
(Factory setting)

2200rpm

Drilling Capacity

BQ

1000m(3280feet)

NQ

700m(2296 feet)

HQ

500m(1640 feet)

Drill Head

Rotation Motor

Hydraulic Motor-variableMaker: SAUER-DANFOSS

RPM

Four Shifts/ Stepless Change 0-1100 RPM

Ratios

1st     14.422:1
2nd     8.171:1
3rd   4.519:1
4th   2.652:1

Head Opener

Pivoting style, Manual actuated

Hydraulic Chuck(PQ)

Hydraulically opened, Disc Spring Clamping, Normally C Closed Type
Axial Holding Capacity of 222400N

Max. Torque

4200 N·m(3098 lbf·ft)

Hold Diameter

98 mm(3.86 inch)

Max. Lifting capacity of Spindle

150 kN(33720 lbf)

Max. Feeding Power

60 kN(13480 lbf)

Primary Pump

Hydraulic pump Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.With load sensing system.

Maker: DANFOSS
1st Pump:148LPM at 31.5MPa
2nd Pump:120LPM at 28MPa
3rd Pump:50 LPM at 16MPa

Hydraulic Tank

Capacity

310 L (82 US Gallons)

Capacity of Main Hoist

Hoisting force (single wire)

57kN(12814 lbf) (bare drum)

Hoisting Speed (single wire)

38-70m/min(bare drum)

Steel Wire Diameter

12 mm(0.473 inch)

Steel Wire Length

50 m(164 feet)

Capacity of Wireline Hoist

Hoisting Force (single wire)

1200 Kg(2646 lb) (bare drum)

Hoisting Speed (single wire)

60-90m/min (bare drum)

Steel Wire Diameter

6 mm(0.236 inch)

Steel Wire Length

1000 m(3280 feet)

Mast

Mast Height

11 m(36.09 feet)

Mast Adjusting Angle

0°—90°

Drilling Angle

45º off horizontal to 90ºvertical down

Feed Pull

15000kg(33075 lb)

Feed Thrust

6000kg(13230 lb)

Rod Pull

3m or 6m(9.84feet or 19.68feet)

Feeding Stroke

3500 mm(137.80 inch)

Slippage Stroke

600 mm(23.62 inch)

Mud Pump

Type

Reciprocating pump Triplex Plunger

Model

BW160/10

Stroke

70mm(2.76 inch)

Discharge pressure

2.5, 4.0, 6.5, 10.0 Mpa
(363, 580, 943, 1450 psi)

Foot Clamp

Clamping Scope

55.5-110 mm(2.19-4.33 inch) through hole dia.154mm(6.06 inch)

Others

Weight (platform type)

9300 Kg(20506 lb)

Dimensions (L×W×H)

5100×2200×2890mm(200×86.6×113.78 inch)

Transport Way

Crawler





2. About us



We are one of the leading manufacturers of diamond core drilling rigs in China ,



We produce and supply spindle type diamond core drilling rigs and all hydraulic core drilling rigs with the drilling capacity from 100 meters to 4200meters, mud pumps and other related drilling tools can be supplied as well.



We warmly welcome clients from all over the world to contact us for any inquiry, and we will try our best to provide professional service to satisfy you.



3. Service



Shipping time depends on the destination.

After we ship the goods, we will email you the shipping information, as well as tracking details.

The goods will be delivered by the most reasonable way for delivery.



 4.Warranty and After-sales services:



1.  All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.



2.  We offer lifer-long technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.



5.Feedback:



1. Therefore, your feedback is extremely important to us, please leave good feedback to us if you get satisfied with our goods and service



2. We care about our valued customers, and will always try to help you



6. Product view

Core Drill Rig For Mining , Mineral exploration Hydraulic Drilling Machine HYDX-4 0

Core Drill Rig For Mining , Mineral exploration Hydraulic Drilling Machine HYDX-4 1
