| Type: | PISTON | Configuration:: | Portable |
|---|---|---|---|
| Power Source: | AC Power， Diesel Engine | Lubrication Style: | Lubricant |
| Place Of Origin: | Zhejiang Of China | Brand Name: | Kaishan |
| High Light: | diesel driven air compressor,lubricated air compressor |
||
cvfy 10/7 65kw power electric piston mining air compressor for sale 10m³/min 7 bar

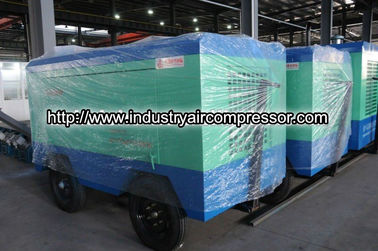

Portable piston air compressor for mining VFY-10/7
Specification of VFY- 10/7
Model : CVFY-10/7
Exhaust Volume 10.0 (m3/min)
Exhaust Pressure 0.7 Mpa
Cylinder 260mmx2/160mmx2
Volume of gas storage tank 160L
Demension 320mmx180mmx200mm
Weight 2300kg
Description of VFY-10/7
Valve plate and and spring strip : made of special steel from Sweden and after special treatment ; high efficient and reliable.
Piston ring : special design ; integral casting ; excellent flexibility ; lowest lubricating oil consumption.
Cylinder : made of boron cast iron ; wear resistant ; special suitable for dusty condition.
Cylinder cover : extrusion process adopted ; streamlined external appearance ; good heat emission performance.
Crankshaft: made from ductile cast iron ; rare magnesium alloy after heat treatment and surface quenching ; excellent performance.
Simple structure , light weight , easy to move
Easy operating and maintenance.
Energy saving low cost
Specifications:
|
|
Air Delivery |
Exhaust Pressure |
Engine |
Weight |
|
VF-3/7 |
3.0 |
0.7 |
Y200L1-6 DianJi(18.5Kw) |
900 |
|
VF-6/7 |
6.0 |
0.7 |
Y250M-6 DianJi(37Kw) |
1250 |
|
VF-7/7 |
7.0 |
0.7 |
Y160M-6 DianJi(40Kw) |
1300 |
|
CVF-7/7 |
7.0 |
0.7 |
YuChai 4108G ChaiYouJi |
1550 |
|
CVFY-7/7 |
7.0 |
0.7 |
YuChai 4108G ChaiYouJi |
2050 |
|
VF-9/7 |
9.0 |
0.7 |
Y280M-6 DianJi(55Kw) |
1700 |
|
VF-10/7 |
10.0 |
0.7 |
Y280M-6 DianJi(65Kw) |
1750 |
|
CVFY-10/7 |
10.0 |
0.7 |
YC4108ZG |
2900 |
|
VF-13/7 |
13.0 |
0.7 |
Y280M-6DianJi(75Kw) |
1800 |
|
CVFY-13/7 |
13.0 |
0.7 |
YC6108ZG |
2900 |
|
CVFY-13/7 |
13.0 |
0.7 |
Commins 6BT5.9-C118 |
2700 |
Competitive Advantage:
1. Heavy duty roller bearing - Oversize crankshaft roller bearings handling high compression load and precision balanced overhung crankshaft for smooth continuous operation
2. Precision cast iron cylinders - Separately cast cylinders with radial fins remove heat efficiently are precision honed for compatibility with piston rings
3. Solid piece connecting rods - Solid end precision connecting rod without bolts and nuts come loose
4. High flow valves assembly - Improved heat treated stainless steel valves assembly increase flow area for durable, reliable operation and easy removal service
5. Heavy duty discharge checkvalves - Patient "Spring-Cushion" design high pressure gas check valves for quiet and lasting operation
6. Filled syntehtic lubricant - Improved performance and increase compressor's life span withstand higher operating temperature, eliminates carbon build-up and extend lubricants change period
7. Efficient motor - Totally enclosed fan cool(TEFC) squirrel cage induction Class F insulation, IEC frame electric motor
8. Safety Valve Protection - Inter-stage and discharge safety valves protected system overpressures
9. Inter and after cooler - High efficient and maintenance free finned tube air cooled after-cooler lower compressed air discharge temperature
10. Easy access cast iron crankcase - Front access heavy duty cas iron crankcase for easy inspection and maintenance allow total oil slag removal
cooperation terms:
1) Delivery time :within 30days after receiving your advance payment
2) Payment terms:T/T 50% in advance ,the balance should be paid within 5days against the B/L date
3) Package:1,plywood cases suitable for sea transportation 2,Fumigation-free wooden cases 3,simple package
4) Air compressor HS CODE: 8414809090
5) Quality Guarantee:12 months from delivery date(quick-wear part except)
6) After-sale service:For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user whin assurance period for free(user in charge of freight fee
