High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard

China High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard supplier
High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard supplier High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard supplier High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard supplier High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard supplier

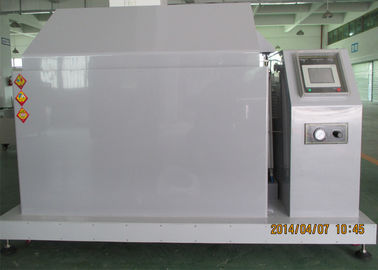

Large Image :  High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard

Product Details:

Place of Origin: China
Brand Name: KOMEG
Certification: CE, , ISO
Model Number: KMH-AHL-120NST

Payment & Shipping Terms:

Minimum Order Quantity: 1 units
Price: Negotiable
Packaging Details: Negotiable
Delivery Time: 15 work days
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Test Chamber Temp: 35±1°C For Salt Spray Method (NSS ACSS) 50±1°C For Corrosion-resistant Testing Method(CASS) Capacity: 90L-160L
Max. Working Temperature: +55°C Multiple Safety Protection Devices :: Current Discharge Protection, Over Pressure Protection,over Temperature Protection, Over Load Fuse Protection
Design Standards:: IEC68-2-11, JIS, H8502,ASTM B-117-97, ISO9227, CNS3627, 3885, 4159, 7669, 8886, JIS D-0201 Power: AC220V 1Φ 50Hz



JIS CNS Standard PVC Material High Performance Led Salt spray Test Equipment Used for Cyclic Corrosion Testing





Application


Salt water spray test chamber is widely used in Corrosion resistance test for products after treated by plating, anodized, spraying, and anti-rust, to test the surface treatment of various materials. Those so-called treatments include coating, electroplating, and films of organic and non-organic materials, anodizing, anti-rest oil and corrosion resistant treatment, which may achieve the purpose of keeping the items from being corroded for a longer period.



Features:


A. The whole part of the device is made of P.V.C. Sheet and the inside of the device is reinforced by using a special lining material. Hence, it is sturdily made and will not transform forever.
B. The test chamber is heated from five directions in order to ensure the temperature difference in the chamber may be kept within (± 1℃).
C. Spray nozzle: The nozzle is specially made to enable it to suck up the salt water and then spray it out in the shape of mist with considerable high speed. When it falls on the surface of the item being tested, the difference of fallen mist may be controlled within ± 0.3ml / 80 cm2h.
D. HUNTER PRINCIPLE is used to make the saturated air hot and moist and to keep the humidity in the test chamber required for test.
E. Temperature is the pre-requisite condition that with have direct impact on corrosion rate. We use P.I.D. temperature control unit to limit the temperature difference within the range of ± 0.5℃.
F. A warning device is used to indicate the low level of the test fluid, when the fluid is only enough for being sprayed for five hours, a buzzer will remind the user to replenish the liquid to ensure continuous spray test.
G. Use full automatic detecting system, test stopped automatic, and lighting display when trouble.



Equipped with working systems



● Salt spray (SAL) acc. to DIN EN ISO 9227 NSS, ASS, CASS, Prohesion

● Optional: Spraying of test solution without compressed air

● High Humidity 98-100 % (CON) acc. to DIN EN ISO 6270-2 CH, AT, AHT

● Accessory: Air conditioning module for supply of standard air acc.to DIN 50014 required by VW PV 1210

● for carrying out of individual and cyclic Corrosion Tests according to corporate standards
such as VDA 621 -415, VW PV 1210

replenish the liquid to ensure continuous spray test.
G. Use full automatic detecting system, test stopped automatic, and lighting display when trouble.

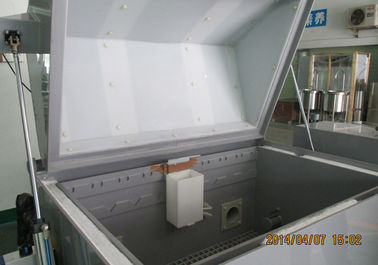

Test Chamber



● Capacity ca. 160L
● Internal dimensions W/D/H ca. 1600*500*1000 mm
● Materials: water bath, side walls and cover made from stainless steel coated with ECTFE.
Halar® Front walls made of polyethylene with milled holes for the specimen.
● Pivoting front door supported by gas springs and pneumatic cylinders for convenient opening and smooth but tight closing, dry silicon seal.

● Compact space saving case design.
●Corrosion resistant robust stainless steel rim.



Combined Cycle Tester System Diagram



JIS CNS Standard PVC Material 270L Salt Spray Surface Testing Machine









Salt Spray Test Chamber System Diagram

JIS CNS Standard PVC Material 270L Salt Spray Surface Testing Machine









Salt Spray Testing working Principle

  • Salt Spraying Process

JIS CNS Standard PVC Material 270L Salt Spray Surface Testing Machine





  • Humidifying Process

JIS CNS Standard PVC Material 270L Salt Spray Surface Testing Machine





  • Drying Process



JIS CNS Standard PVC Material 270L Salt Spray Surface Testing Machine

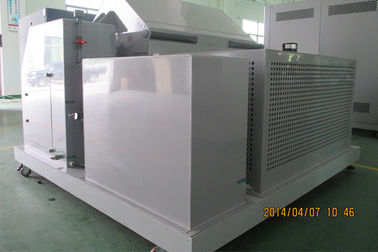

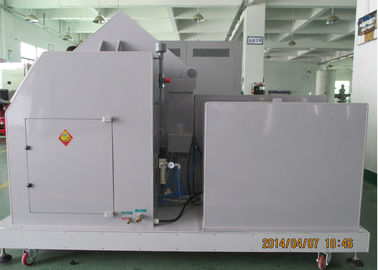

High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard



High Performance PVC Cyclic Corrosion LED Salt Spray Test Equipment With JIS CNS Standard

Standard specifications



Model

HL-160-NS

HL-90-BS

HL-60-SS

Inside box size (W*H*D)

1600*500*1000 mm

900*500*600 mm

600*400*450 mm

Out side box size(W*H*D)

2240*1500*1600 mm

1460*1280*910 mm

1130*1070*630 mm

Working Volume(L)

800

270

60

Heater

15KW+1KW

7KW+0.75KW

3KW+0.75KW

Air compressor

2HP

1/2HP

1/2HP

Test Chamber Temp

35±1°C for Salt Spray Method (NSS ACSS)

50±1°C for Corrosion-resistant Testing Method(CASS)

Saturated air Barrel Temperature

47±1°C for Salt Spray Method (NSS ACSS)
63±1°C for Corrosion-resistant Testing Method(CASS)

PH

6.5~7.2 for Salt Spray Method (NSS ACSS)

3.0~3.2 for Corrosion-resistant Testing Method(CASS)

Multiple Safety Protection Devices :

Current discharge protection, over pressure protection,over temperature protection, over load fuse protection

Power

AC220V 1Φ 50Hz
