| Motion Pattern: | Double Action | Operating Pressure Range: | 0.15~0.7MPa |
|---|---|---|---|
| Operating Speed: | 50-500mm/s | Product Name: | Pneumatic Air Cylinder |
| Working Medium: | Filtered Compressed Air | Bore Size: | 6mm-25mm |
| High Light: | Pneumatic Air Cylinder,Linear Actuator |
||

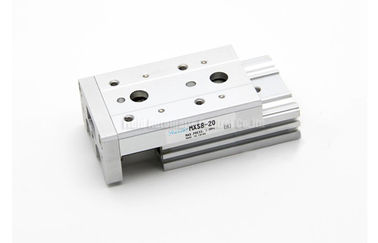

0.7MPa 16mm Slide Table Air Cylinder Double Acting , Pneumatic Gas Cylinder
SMC type MXS Slide table double acting Pneumatic air cylinder Bore size 6mm-25mm e.g.MXS-25-50 with cushion shock absorber
Quick Detail:
* MXS sliding table air cylinder SMC equvalent
* Double action motion pattern
* With Rubber buffer ensure smooth motion
* Integrating a cross roller bearing with a guide and two small air cylinders for compact force generation to make sure precision motion
* Available in six sizes each with set stroke lengths and is standard with auto switch capability
* Stroke adjustments are available for extend,retract or both in ranges of 0-5mm,0-15mm and 0-25mm.In addition,there are many other standard options that include shock absorbers,end lock,axial piping,and buffer
* With self-lubricating bearing,lubrication free
* Bore size 10mm,16mm,20mm,25mm
Specifications:
|
ORDERING CODE |
||||
|
MXS |
25 |
50 |
|
|
|
MXS:Standard sliding table type |
Bore Size |
Stroke |
Adjusting device |
Functional Options |
|
6:6mm |
Blank: No |
Blank:NO |
||
|
8:8mm |
AS:Front end tune-way |
F:With spring buffer |
||
|
12:12mm |
AT:Back-end tune-way |
R:End lock |
||
|
16:16mm |
A:Both ends adjusting |
P:Axial connect |
||
|
20:20mm |
BS:Front end shock absorber |
FR:With spring buffer and End lock |
||
|
25:25mm |
BT:Back end shock absorber |
FP:With spring buffer and Axial connect |
||
|
B:Both ends shock absorber |
||||
|
SPECIFICATION |
||||||
|
Bore size(mm) |
6 |
8 |
12 |
16 |
20 |
25 |
|
Working Medium |
Filtered compressed air |
|||||
|
Motion Pattern |
Double action |
|||||
|
Operating pressure range |
0.15~0.7MPa |
|||||
|
Ambient Temperature |
-10~60ºC |
|||||
|
Operating speed |
50~500mm/s |
|||||
|
Buffer cushioning |
Rubber Buffer |
|||||
|
Port size |
M3x0.5 |
M5x0.8 |
M5x0.8 |
M5x0.8 |
Rc1/8 |
Rc1/8 |
Pneumatic cylinder,Air cylinder, Linear actuator,Gas cylinder,Double shaft air cylinder,Sliding air cylinder, slide table pneumatic air cylinder.
